{The Brussels Musical Instruments Museum Oboe Collection}
Stefaan Verdegem - Koninklijk Conservatorium Brussel
-
-
IND ?> Inv. number
2321
-
CN/NP ?> Common name / Nominal Pitch
English horn in F
-
TS ?> Type or system
9-keyed curved English horn
-
MK ?> Maker
Triebert
-
IN ?> Mark, inscriptions
(barbican tower with 3 merlons) / TRIEBERT / A PARIS - on all 3 parts;
(hardly legible on TJ).
- PL ?> Place of origin Paris
- DM ?> Date of making 2nd quarter of the 19th century.
- MATERIALS Leather covered maple with ivory mounts and brass keys.
- MEASUREMENTS
- Body Length c. 792 mm
- TJ length (body + tenon) c. 300 mm + 23.7 mm
- MJ length (body +tenon) c. 330 mm + 26.3 mm
- B length 162 mm
- Acoustic Length 450 mm
- BORE
- Minimal bore 5.4 mm
- Reed well diameter 8.6 mm
- Bore at end of TJ 10.8 mm
- Bore at top of MJ 11.4 mm
- Bore at end of MJ 17.3 mm
- Bore at top of B 17.4 mm
-
TECHNICAL DESCRIPTION

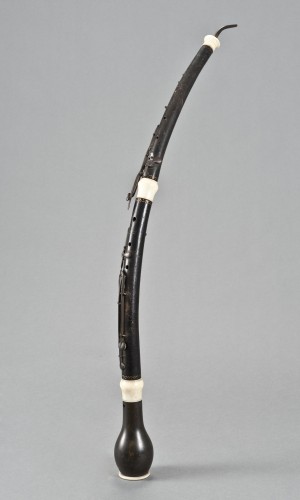

Curved body with leather covered maple wood for TJ and MJ. Black stained maple for B. 4 ivory mounts.
All keys on oval plate based rods, round lipped key flaps type Heyde-181/4.
On TJ: octave key with extremely long lever for R1(!), C and Bb for R1 (with overlap), G# for L4;
On MJ: F# for R4, cross-F, Eb, C# and C key.
SATK (springs attached to the key).
Key-holes milled out with countersunk edge.
3rd hole doubled with finger cove.
Metal ring for necklace on the back.
Bulb bell with two vent-holes.
gold painted festoon decoration on TJ and MJ extremities.
No metal lining.
-
FL ?> Faults
Good condition except for TJ leather a bit worn out. TJ leather cover shows traces of repair on the back. No visible cracks. All pads and springs seem to be original.
-
PA ?> Playing Accessories
Bocal (not clear if original) in brass 99 mm ø 5.9 mm + 3.1 mm.
-
UP ?> Usable Pitch
Best result was obtained with a reed TL 49 mm / staple 27 mm / tip width 9.5 mm, and a bocal TL 93 mm ø 6 mm + 3.1 mm, giving as a result A = c. 438 Hz.
-
PC ?> Performance Characteristics
Nice warm sounding instrument with quite a lot of resistance. Quite even intonation.
- FM ?> Further information on maker
-
SR ?> Specific literature Reference
Mahillon (R1978) Vol. IV p. 195.
Listed in Young (1993) p. 240.
-
IR ?> Illustration reference
Mahillon (R1978) Vol. IV p. 196 (picture).
-
GL ?> General literature (about this type of instrument)
Finkelman (2000) Teil 6/7.
-
Comparable instruments
Brussels: MIM Triebert E.H. no. 0974.
Edinburgh: EUCHMI Triebert E.H. no. 3322.
-
Remarks
There are some differences from the MIM 0974:
- Characteristic gold painted festoon decoration on TJ and MJ extremities.
- Sockets are not reinforced with metal, and cork covered as on 974.
- The brass keywork differs slightly from 974.
- Very unusual octave key design for R1! Later addition or custom-made order?
Triebert (1855) mentions on p. 7 of his catalogue that “...the firm restricted the production of curved English horns...since there is no advantage any more in making them like this, given the latest improvements [on the straight English horn].”
